SMA 26.5 GHz





Delta's SMA 26.5 GHz Series

These extended-frequency, precision SMA series connectors feature maximum VSWR of 1.15:1 from DC to 18 GHz, and 1.25:1 from 18 to 26.5 GHz.

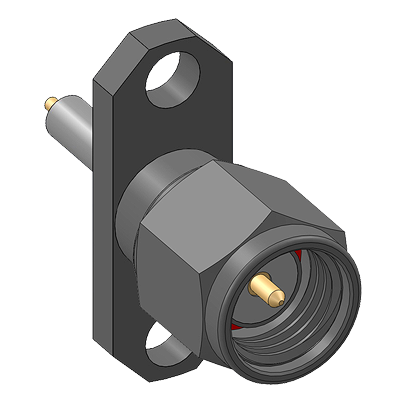

Along with cable connectors for semi-rigid cable, our SMA 26.5-GHz line includes receptacles with post contacts and integral metal contact rings, and field-replaceable types in a variety of flange sizes. These field-replaceable receptacles are available as jacks or plugs, each with a choice of air or PTFE rear dielectric matching sections, and with or without EMI gaskets.

The field-replaceable receptacles are available for use with hermetic seals or accessory pins with diameters of .012, .015, .018, .020, or .036 inches.

Three types of SMA 26.5-GHz adapters are also included in this series, as are bulkhead receptacles.

Performance Features:

Mode free through 26.5 GHz • Low reflection loss (VSWR)

Low Insertion Loss, Low RF Leakage > -100 dB

Consistent Unit to Unit Performance • All materials meet the Outgassing Requirements of NASA Publication 1124

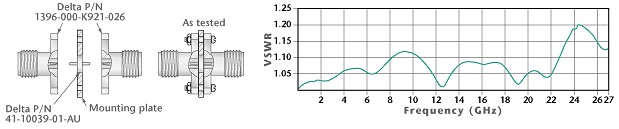

VSWR (typical):
