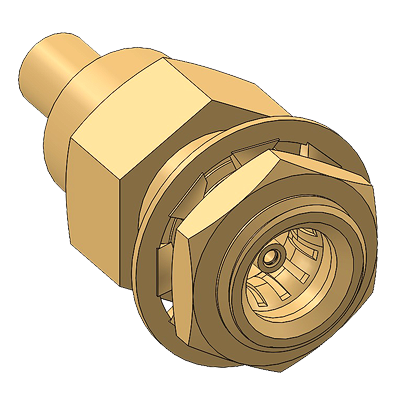

BMMA Microminiature Connectors combine a mechanically rugged design with excellent electrical performance at high frequency. They are ideal for use in blind-mate and rack-and-panel applications.
Nominal Impedance: 50 ohms.
Frequency Range: DC-28 GHz.
VSWR: 1.05 + .01f (Ghz).
Attenuation: .040 x√f (GHz).
Dielectric Withstanding Voltage: 675 volts RMS.
Insulation Resistance: Center contact, 6.0 milliohms max;
Outer contact, 3.0 milliohms max; Outer contact to cable, .5 milliohms max.
RF Hipot: 675 volts RMS @ MHz.
RF Leakage: -(90-f)(GHz)dB Min. (Interface only, fully Mated.)
