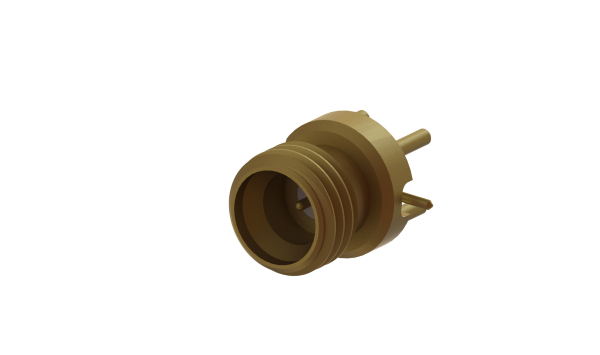

SMPM-T Right Angle Solder Female for .086″ Semi-Rigid or Flex Cable
8876094G003-004
General Specifications
| RF Series | SMPM-T |
| Gender | Female |
| Orientation | Right Angle |
| Mounting Types | Cable Mount |
| Cable Attachment | Solder |
| Cable Type | .086 (RG 405) Flex or Semi-Rigid |
| Coupling | Threaded |
| Cable Attachments | Solder |
Electrical Specifications
| Operating Frequency | DC to 26.5 GHz |
| Impedance | 50 OHMS |
Mechanical Specifications
| Durability | 500 cycles |
Environmental Specifications
| Temperature Range | -65°C to +165°C |
Materials Specifications
| Body | Beryllium Copper |
| Center Contact | Beryllium Copper |
| Insulators | PTFE |
Plating Specifications
| Body | Gold |
| Center Contact | Gold |
