Delta's MCX Series

Delta MCX series connectors are subminiature, 50-ohm impedance connectors with snap-on coupling. They are best suited for use with cables in the range of .070" to .120" diameter, such as RG-178 and RG-316/U.

These connectors provide small size, light weight, and economy with the convenience of snap-on mating and the ability to rotate connector pairs after mating for precise alignment. All Delta MCX connectors are available with gold-plated bodies, or with nickel-plated bodies for economy.

As with our other connector series, Delta’s customer-driven design results in MCX series connectors with practical and unique features that make your design and assembly process easier. Some of these include:

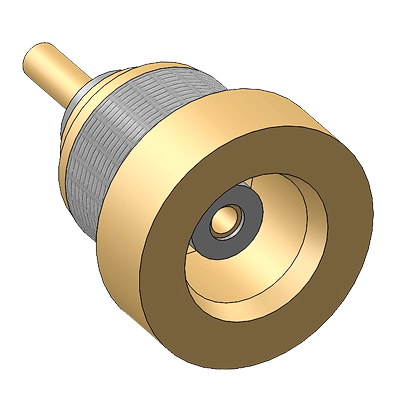

• PressMount receptacles mount securely in a single round hole, saving space on your components and reducing your housing fabrication costs.

• P. C. board receptacles with a choice of through-hole, edge mounting, or surface mounting.

• P. C. board jack receptacles that fit flush with the edge of boards, ideal for daughterboard applications.

Our MCX series product line is still growing, so please call if you don’t see what you need.
