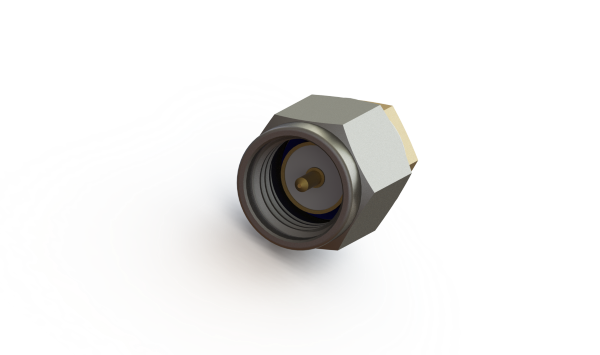

SMA Straight Solder Male for .047″ Semi-Rigid or Flex Cable
1301111K003-002
General Specifications
| RF Series — Interface 1 | SMA |
| Gender | Male |
| Orientation | Straight |
| Mounting Types | Cable Mount |
| Cable Attachment | Solder |
| Cable Type | .047 Flex or Semi-Rigid |
| Coupling | Threaded |
| Cable Attachments | Solder |
Electrical Specifications
| Operating Frequency | DC to 18 GHz |
| Impedance | 50 OHMS |
Mechanical Specifications
| Durability | 500 cycles |
Environmental Specifications
| Temperature Range | -65°C to +165°C |
Materials Specifications
| Body | Stainless Steel |
| Center Contact | Beryllium Copper |
| Insulators | PTFE |
| Gasket | Fluorosilicone |
Plating Specifications
| Body | Gold |
| Center Contact | Gold |
