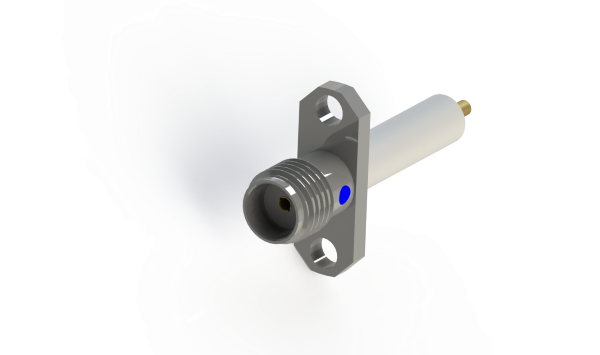

SMA Straight Panel Mount (2 Hole) Female with Extended Contact/Insulator
1358000K921-010
General Specifications
| RF Series | SMA |
| Gender | Female |
| Orientation | Straight |
| Mounting Types | Panel |
| Mounting Configurations | Panel Mount—2-Hole Flange |
| Contact Termination | Post |
| Cable Attachment | Solder |
| Coupling | Threaded |
| Contact Terminations | Post |
| Cable Attachments | Solder |
Electrical Specifications
| Operating Frequency | DC to 18 GHz |
| Impedance | 50 OHMS |
Mechanical Specifications
| Durability | 500 cycles |
Environmental Specifications
| Temperature Range | -65°C to +165°C |
Materials Specifications
| Body | Stainless Steel |
| Center Contact | Beryllium Copper |
| Insulators | PTFE |
Plating Specifications
| Body | Passivated |
| Center Contact | Gold |
