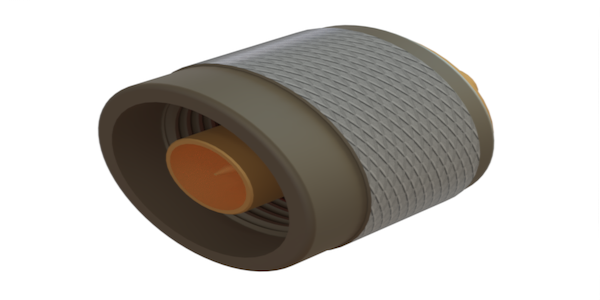

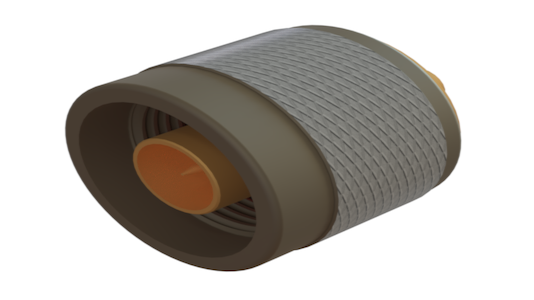

N Straight Male for .141″ Semi-Rigid or Flex Cable
1101031N003-001General Specifications
| RF Series Interface 1 | N |
| Gender | Male |
| Orientation | Straight |
| Mounting Type 1 | Cable Mount |
| Cable Attachment 1 | Solder |
| Cable Type 1 | .141 (RG 402) Flex or Semi-Rigid |
| Coupling 1 | Threaded |
| Cable Attachments | Solder |
Electrical Specifications
| Operating Frequency | DC to 18 GHz |
| Impedance | 50 OHMS |
Mechanical Specifications
| Durability | 500 cycles |
Environmental Specifications
| Temperature Range | -65°C to +165°C |
Materials Specifications
| Center Contact 1 | Brass |
| Insulator 1 | PTFE |
| Housing 1 | Brass |
| Gasket 1 | Silicone Rubber |
Plating Specifications
| Body Material 1 | Brass |
