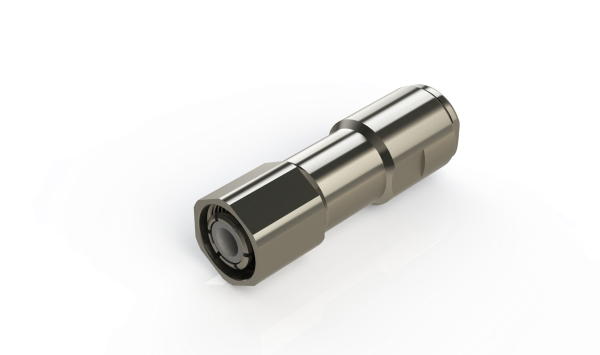

HN Straight Clamp Male for DHP 500 Cable
1601662N001-700
General Specifications
| RF Series — Interface 1 | HN |
| Gender | Male |
| Orientation | Straight |
| Mounting Types | Cable Mount |
| Cable Attachment | Clamp |
| Cable Type | DHP-500 |
| Coupling | Threaded |
| Cable Attachments | Clamp |
Electrical Specifications
| Operating Frequency | DC to 1 GHz |
| Impedance | 50 OHMS |
Mechanical Specifications
| Durability | 500 cycles |
Environmental Specifications
| Temperature Range | -65°C to +200°C |
Materials Specifications
| Body | Brass |
| Center Contact | Brass |
| Insulators | PTFE |
| Gasket | Silicone Rubber |
Plating Specifications
| Body | Nickel |
| Center Contact | Silver |
