Color Colored Adapter Technical Information

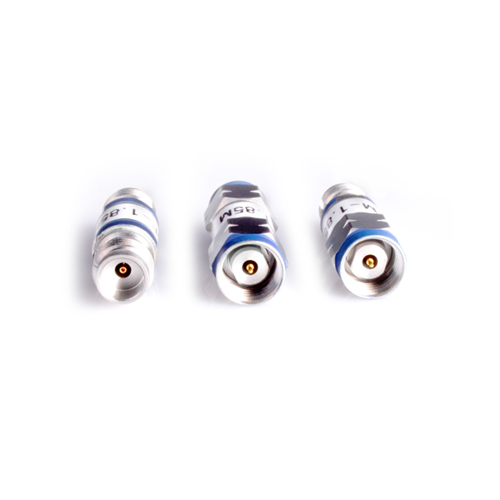

Construction



Housing & Coupling Nut:

Stainless Steel, Passivated

Contact:

Beryllium Copper (BeCu) Gold plated

Dielectric:

Noryl EN265, Polyphenylene Oxide (PPO)

Locking Ring:

Beryllium Copper(BeCu)

Bushing:

Brass Per ASTM B16,C36000 Alloy

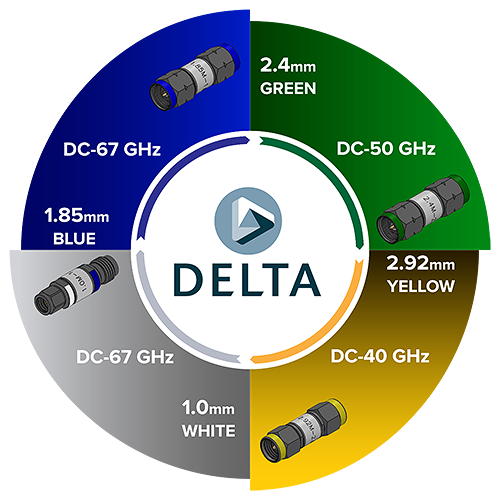

Color Wheel



Delta’s adapters are designed in

accordance with

IEC 61169-35 (2.92mm)

IEC 61169-40 (2.4mm)

IEC 61169-32 (1.85mm)

& IEC 61169-31 (1.0mm.)

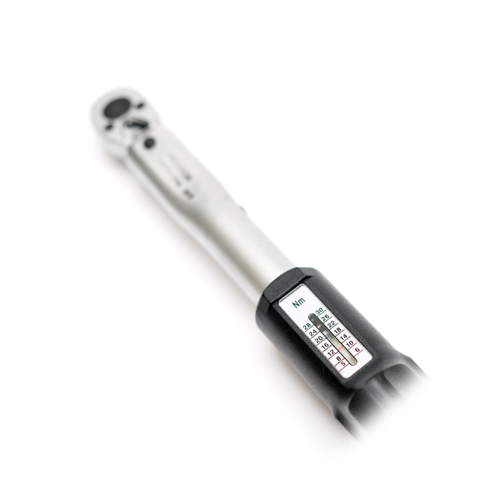

Torque Values



Per the IEC 61169 definitions

for each interface the recommended

mating torques are as follows:

1.85 mm: .8 Nm to 1.1 Nm

2.92 mm: .8 Nm to 1.1 Nm

2.4 mm: .8 Nm to 1.1 Nm

1.0 mm: .3 Nm to .41 Nm
