Delta's 7/16 Series

Delta 7/16 series connectors are large, versatile 50-ohm impedance connectors with M29 x 1.5 metric threaded coupling. These rugged connectors conform to DIN 47223, and feature good power-handling capability along with VSWR as low as 1.07:1 @ 2 GHz.

Because these connectors are designed to minimize signal distortion from intermodulation, silver plating is standard. The optional Albaloyplating provides greatly increased tarnish resistance while preserving the connectors' low intermodulation characteristics; optional nickel plating should only be specified when low intermodulation is not a concern in your system design.

Delta's customer-driven design provides 7/16 series connectors with practical and unique features that make your design and assembly process easier. Some of these include:

VersaCom cable connectors let you stock various body and cable attachment subassemblies, and assemble them into straight or right angle connectors as needed.

PressMount receptacles mount securely in a single round hole, saving space on your components and reducing your housing fabrication costs.

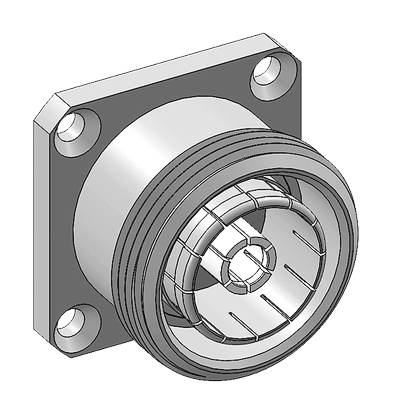

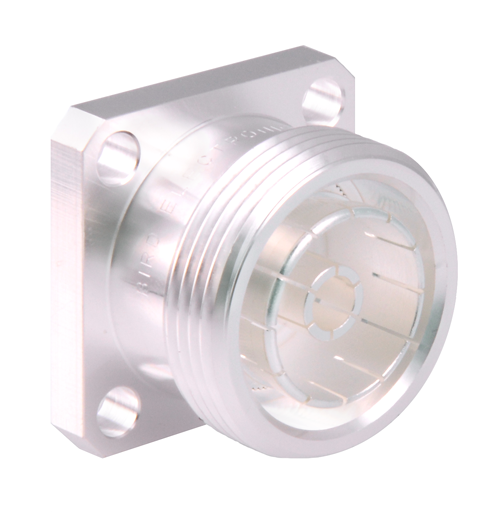

Panel receptacles with common flange sizes to match the same hole pattern as standard type N connectors, letting you drill one hole pattern and mount BNC, N, SMA, TNC, or 7/16 series connectors as needed.

All Delta 7/16 series plugs feature a coupling nut with a knurled surface for secure grip when hand-tightening, and a hex for tightening with a wrench. All can be supplied with full-length hex coupling nuts as well.
